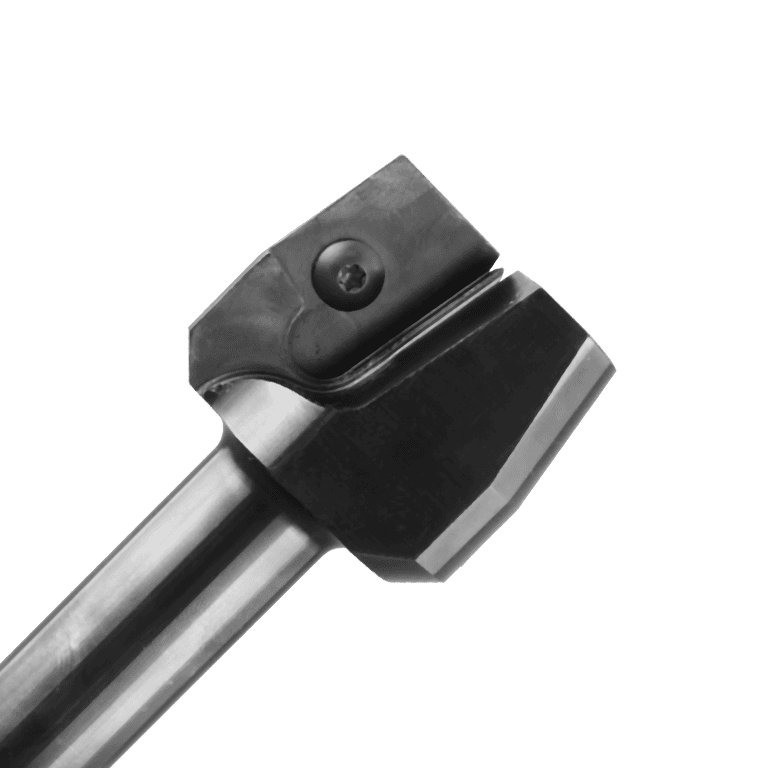

564RP.050-2W

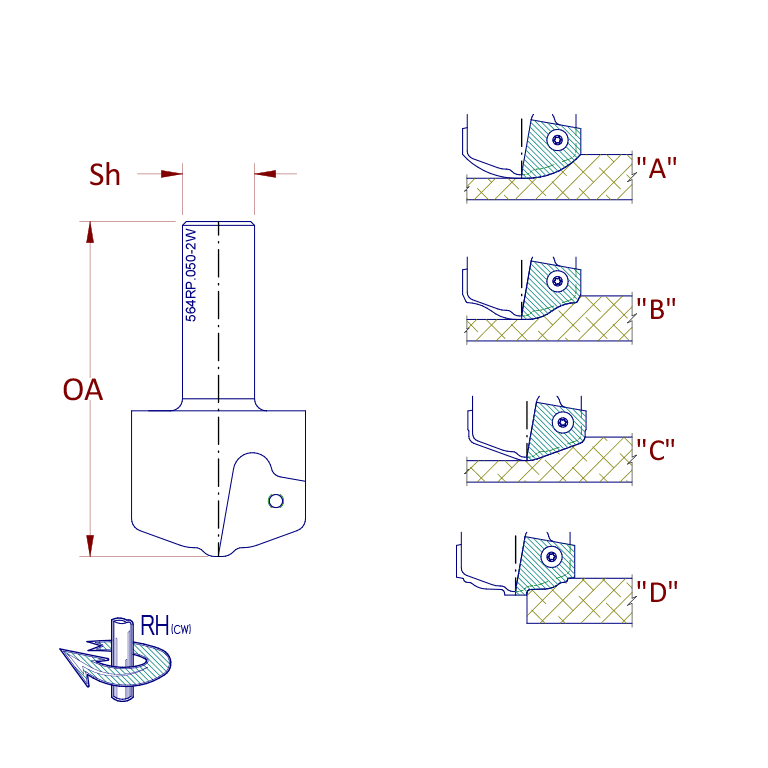

*Tool Body ONLY* Single 564RP.050-2W steel body can accommodate additional profiles "A-D" shown below. Tool is used primarily when manufacturing MDF door profiles.

564RP.050-2W 1
Diameter (D)
50mm
Shank (Sh)
0.750"
Overall Length (OA)
3.500"
Number of Wings/Flutes/Teeth (Z)
2
Rotation (Rotation)
RH

Replacement Parts

Part NumberDescriptionQuantity Per One
158-564RP.050-2W-AOptional Profiled Insert2
158-564RP.050-2W-BOptional Profiled Insert2
158-564RP.050-2W-COptional Profiled Insert2
158-564RP.050-2W-DOptional Profiled Insert2
580.RH-M3505.9Replacement Knife Screw2
