533HP.110.240-02B

Helical Spiral planing tools are great for general purpose planing on moulders, jointers, and shapers. Low horsepower required to cut. Radius knives help minimize lines. Top and bottom heads have different spiral directions that draw the chips towards the spindle base. Shallow gullets for reduced noise levels. Added Shear on knives results in less tear out and lower cutting forces than conventional Spiralex tools.

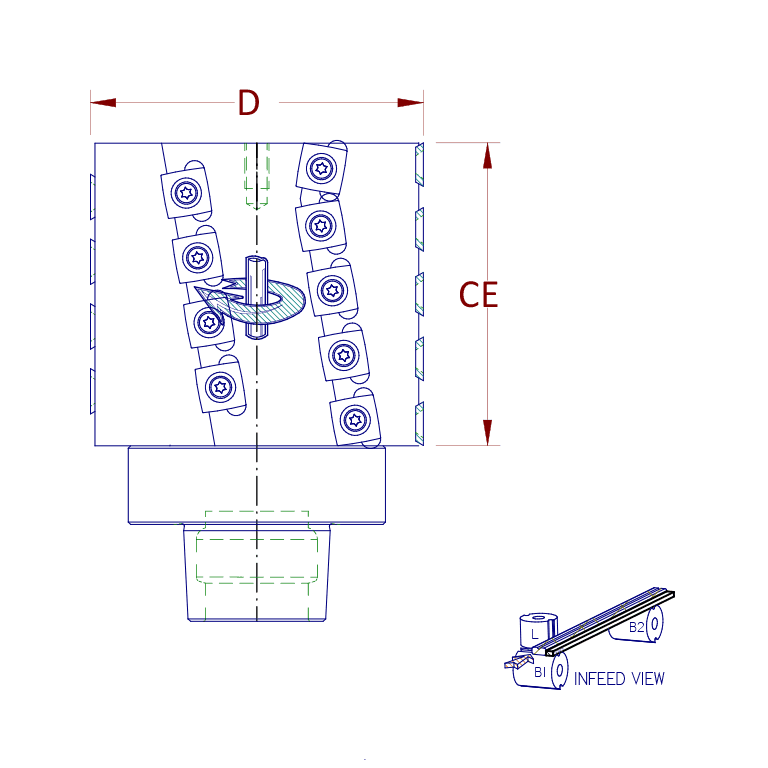

533HP.110.240-02B 1
Diameter (D)
110mm
Cutting Edge (CE)
240mm
Number of Wings/Flutes/Teeth (Z)
2+2
Material (Material)
HW
Core (Core)
HSK85W
Spindle (Spindle)
Bottom/Left

Machines

Machine
Machine-Manufacturer
Weinig PowerLock

Weinig PoweLock Moulders

Replacement Parts

Part NumberDescriptionQuantity Per One
592-0007Replacement TOK Insert Knives48
580.CST-M6016.ELBEReplacement TOK Insert Knife Screw48
