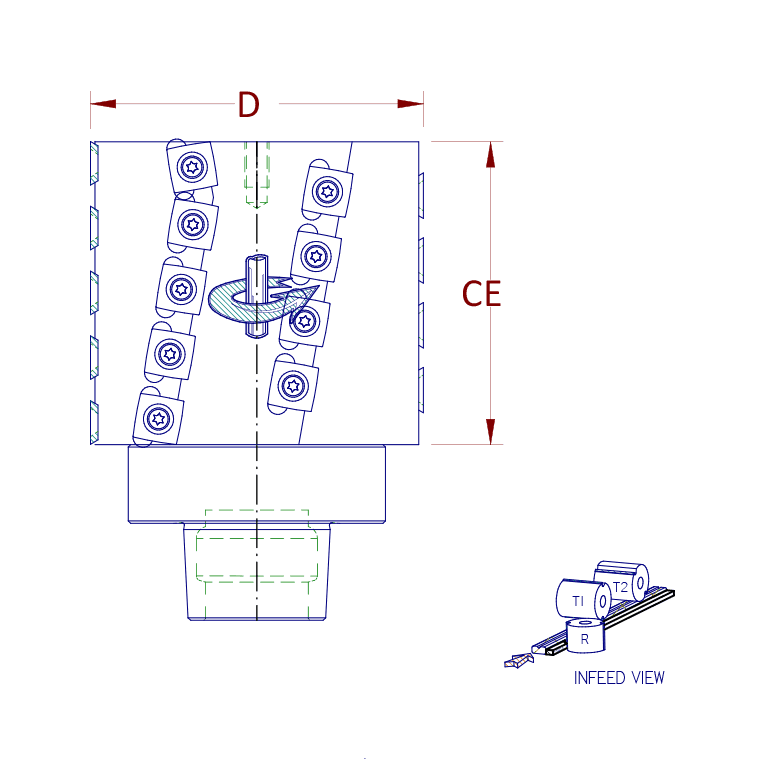

533HP.110.060-02T
Helical Spiral planing tools are great for general purpose planing on moulders, jointers, and shapers. Low horsepower required to cut. Radius knives help minimize lines. Top and bottom heads have different spiral directions that draw the chips towards the spindle base. Shallow gullets for reduced noise levels. Added Shear on knives results in less tear out and lower cutting forces than conventional Spiralex tools.
Diameter (D) | 110mm |
Cutting Edge (CE) | 60mm |
Number of Wings/Flutes/Teeth (Z) | 2+2 |
Material (Material) | HW |
Bore Size (d) | HSK85W |
Spindle (Spindle) | Top/Right |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 592-0007 | 10 | |
| 580.CST-M6016.ELBE | 10 |
