517-155.050

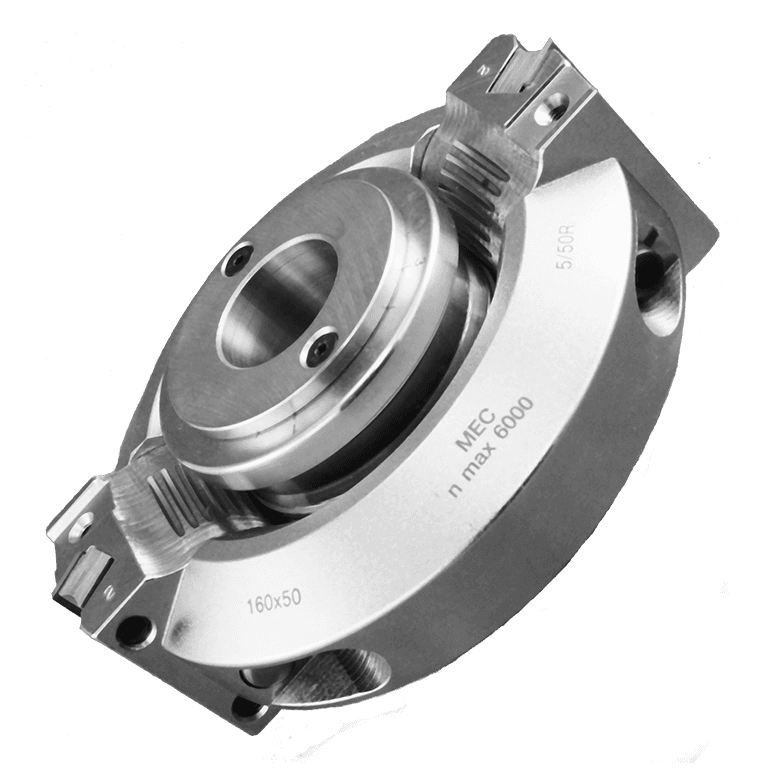

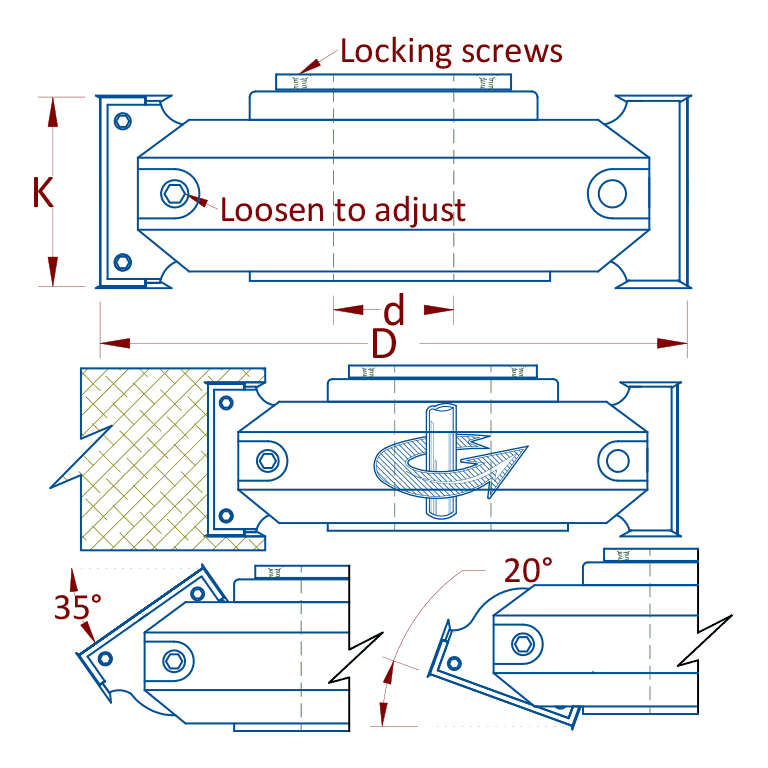

Adjustable bevel cutterhead. Various angles can be achieved with single tool. Great for use on shapers. Simply loosen locking screws and turn dial, then tighten the locking screws to set at various angles.
Diameter (D) | 160mm |
Number of Wings/Flutes/Teeth (Z) | 2+2+2 |
Material (Material) | HW |
Bore Size (d) | 1.2500" |
Kerf (K) | 50mm |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 590-0500 * | Replacement TOK Insert Knives | 2 |
| 592-0002 | Replacement Spur Insert Knives | 4 |
